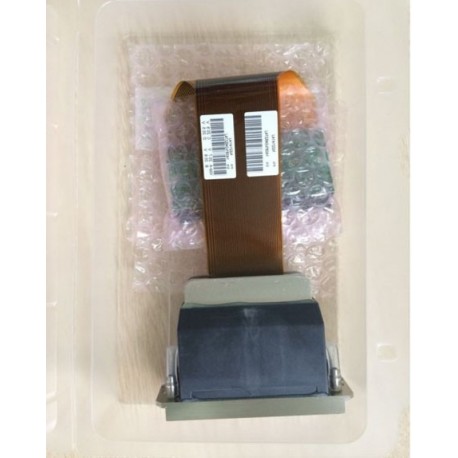

Genuine New Ricoh Gen5 / 7PL-35PL Printhead Water

Ricoh Gen5

New product

$ 1,175.00 tax incl.

$ 1,175.00 per 1

This GEN5 printhead is suitable for a range of water printers. It supports up to four colours and has a total of 1.280 nozzles.

More details

Add to wishlist

100 Items

Genuine New Ricoh Gen5 / 7PL-35PL Printhead Water

This GEN5 printhead is suitable for a range of water printers. It supports up to four colours and has a total of 1.280 nozzles.

It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead and it is covered by a manufacturer warranty. This Ricoh GEN5 is available in two different cable lengths: 140mm or 390mm.

Product Specifications

Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo yype: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Ink compatibility: Water Inks
Life: 100 billion actuations per nozzle

ATP Color : DFP1320 DPP740 G5
d.gen : Teleios Hexa, Arachne Hexa, Papyrus G5, Papyrus Hexa, Teleios Grande G5, Artrix G5, Teleios Grande/H6
DIP : J4
Flora : LJ200T
Hollanders : ColorBooster 230, ColorBooster 250
Mingyang : MY1800T
