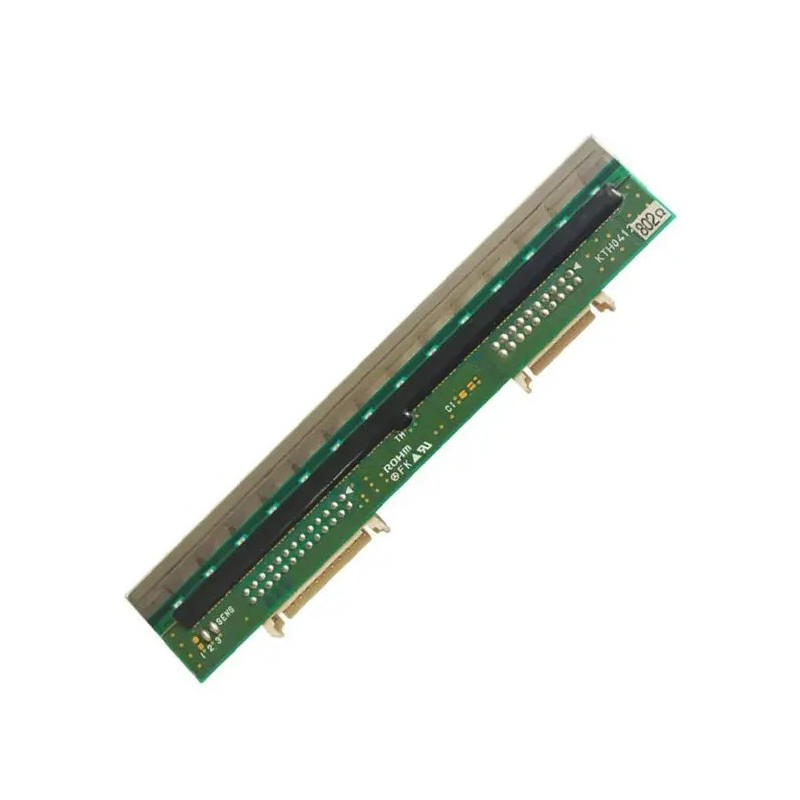

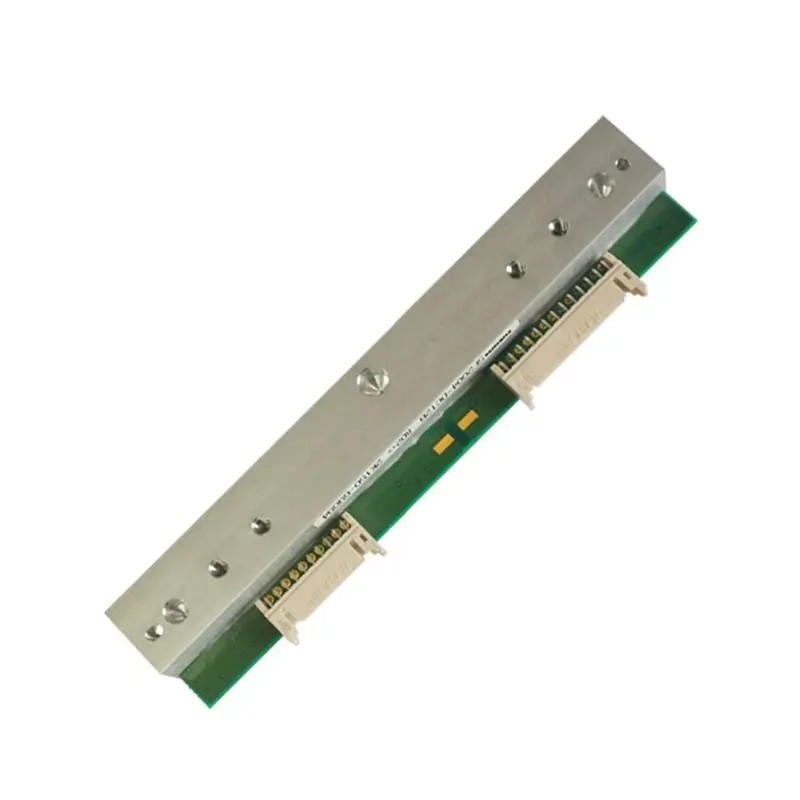

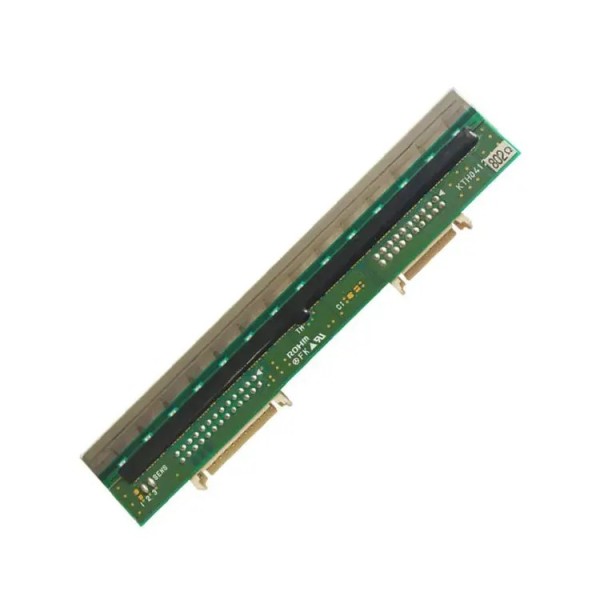

Toshiba TEC B-EX6T1-GS 6-Inch Thermal Printhead 203 DPI FMBC0136201
- Write a review
$790.00
$458.20
Save 42%
Authentic OEM 203 DPI wide-format near-edge thermal printhead module for Toshiba TEC B-EX6T1-GS 6-inch industrial printers. Built for 12 ips high-speed pallet, shipping, and compliance labeling. Factory-certified replacement.
OEM Replacement Component
Toshiba TEC B-EX6T1-GS Series 6-Inch Thermal Printhead (203 DPI)
OEM Part Number: FMBC0136201 | Genuine Wide-Format Industrial Near-Edge Direct Thermal & Thermal Transfer Line Head
Product Overview
The Toshiba TEC FMBC0136201 is an authentic original equipment manufacturer (OEM) replacement thermal printhead engineered specifically for the Toshiba TEC B-EX6T1-GS wide-format industrial printer series. Utilizing Toshiba’s advanced Near-Edge (corner-edge) printhead architecture, this wide-web line head delivers 203 DPI (8.0 dots/mm) resolution across an expansive active 6.3-inch (160.0 mm) print span, built to sustain heavy-duty duty cycles at speeds up to 12 inches per second.
Engineered with a beveled ceramic substrate array housing 1,280 micro-heating elements and coated with a wear-resistant dielectric protective glaze, the FMBC0136201 enables immediate ribbon separation after heat pulse discharge. This specialized near-edge profile eliminates ribbon drag and static build-up across wide media stocks, supports Toshiba’s integrated ribbon-saving technology, and ensures edge-to-edge optical density for pallet logistics tags, chemical drum compliance labels (GHS), and automotive Odette formats.
Part Information
| Product Name | Toshiba TEC B-EX6T1-GS Thermal Printhead |
| OEM Manufacturer | Toshiba TEC Corporation |
| OEM Part Number | FMBC0136201 |
| Component Classification | Original Equipment Manufacturer (OEM) Replacement Thermal Printhead |
| Head Architecture | Wide-Format Near-Edge (Corner-Edge) Matrix on Industrial Aluminum Heatsink |
| Manufacturing Standard | Toshiba TEC Factory Certified (Japan) |
Technical Specifications
| Printing Technology | Near-Edge Thermal Transfer (TT) & Direct Thermal (DT) |
| Native Resolution | 203 DPI (8.0 dots/mm) |
| Dot Pitch | 0.125 mm (nominal dot-to-dot spacing) |
| Effective Print Width | Up to 160.0 mm (6.3 inches / 6-inch nominal format) |
| Total Heating Elements | 1,280 Dots (continuous near-edge array) |
| Maximum Rated Speed | Up to 12.0 ips (304.8 mm/sec) — media and ribbon profile dependent |
| Ribbon & Media Matching | Dedicated Near-Edge Wax/Resin and Near-Edge Resin ribbons; vellum, synthetic films (PET, PP, PE), matte/gloss coated stocks, and direct thermal media |
| Electrical Interface | Dual high-density multi-pin Flexible Flat Cable (FFC) industrial connectors |
| Thermal Feedback | Integrated internal thermistor for closed-loop CPU strobe pulse compensation across wide webs |
Key Features & Operational Advantages
- Near-Edge Technology Integration: Micro-resistors placed along the substrate edge allow immediate ribbon peel-off, drastically reducing friction drag and eliminating ribbon wrinkle across full 6-inch wide print jobs.
- Ribbon-Save Mechanism Synchronization: Fully certified for seamless operation with Toshiba TEC's mechanical ribbon-save hardware, lifting the head to skip blank web sections and cutting consumable costs.
- Wide-Span Heatsink Base: Milled industrial aluminum baseplate efficiently conducts away excess heat, preventing edge element burnout and maintaining consistent optical density across all 1,280 heating dots.
- Drop-In Factory Calibration: Pre-calibrated factory resistance ratings integrate directly with the B-EX6T1 mainboard drive tables, eliminating manual voltage adjustments and ensuring balanced current distribution.
CRITICAL TECHNICAL & OPERATIONAL ADVISORY
1. Mandatory ESD Precautions: Embedded near-edge resistive arrays and driver shift registers are Class 1 ESD-sensitive components. Technicians must wear a grounded ESD wrist strap and work on a static-dissipative work surface. Never touch the ceramic dot array or signal connector terminals directly.
2. Complete Power Isolation: Always power off the printer and disconnect the main AC power cord prior to servicing the head assembly. Disconnecting or seating cable harnesses while the power supply is energized will cause instantaneous gate blowout in the driver ICs and permanently destroy the head.
3. Wide-Span Carriage Pressure Alignment: An expansive 160 mm printline requires precise balancing of the carriage pressure toggles. Uneven mechanical pressure across the wide platen will cause ribbon wrinkling, premature edge element burn, and diagonal density dropouts.
4. Preventive Cleaning & Ribbon Matching: Always use dedicated Near-Edge formulated thermal transfer ribbons to prevent premature element wear. Clean the beveled printline after every ribbon change using a lint-free swab saturated with 99.7% electronic-grade Isopropyl Alcohol (IPA). Allow the array to dry completely before applying power. Never use metallic tools or abrasives on the glazed edge.
Compatible Models & Systems
| System Family | Native Resolution | Supported Models |
|---|---|---|
| Toshiba TEC B-EX6T1 Series | 203 DPI (8.0 dots/mm) | B-EX6T1-GS12-QM-R (Near-Edge) |
| Toshiba TEC Wide-Web Industrial | 203 DPI (8.0 dots/mm) | B-EX6T1 Type 1 GS Chassis Models |
*Model Differentiation Note: This printhead is dedicated strictly to the Near-Edge 203 DPI B-EX6T1-GS series. It is NOT compatible with 305 DPI models (B-EX6T1-TS, Part # FMBC0136301) nor Flat-Head 6-inch models (B-EX6T3 series). Verify the configuration tag on the printer frame prior to unsealing the component.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Unopened Factory Original Genuine OEM Component in Factory-Sealed Anti-Static Packaging.
Warranty Scope: Covered by standard manufacturer DOA replacement protection against electrical continuity failures and physical manufacturing defects upon initial arrival. Operating longevity is governed by media abrasiveness, ribbon formulation, operating heat levels, and routine maintenance compliance.
Return Policy: Precision industrial electronic consumable. Due to sensitivity to electrostatic discharge and inherent operational wear characteristics, components that have been unsealed from their protective static-shielding bag, mounted, or energized on a printer cannot be returned or restocked under standard commercial terms. Please confirm your printer model and OEM part number with technical support prior to unsealing.
