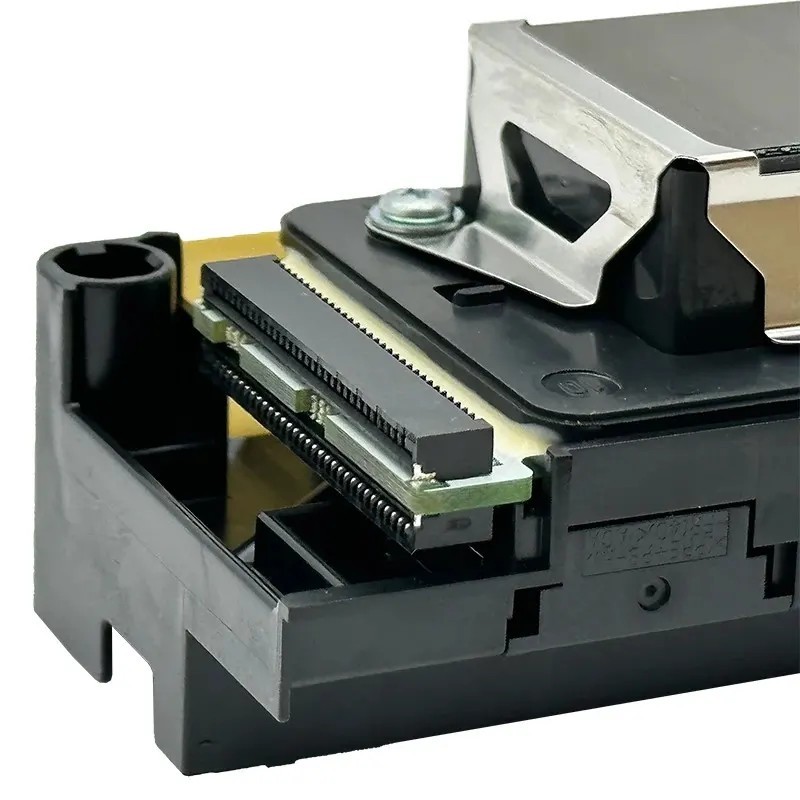

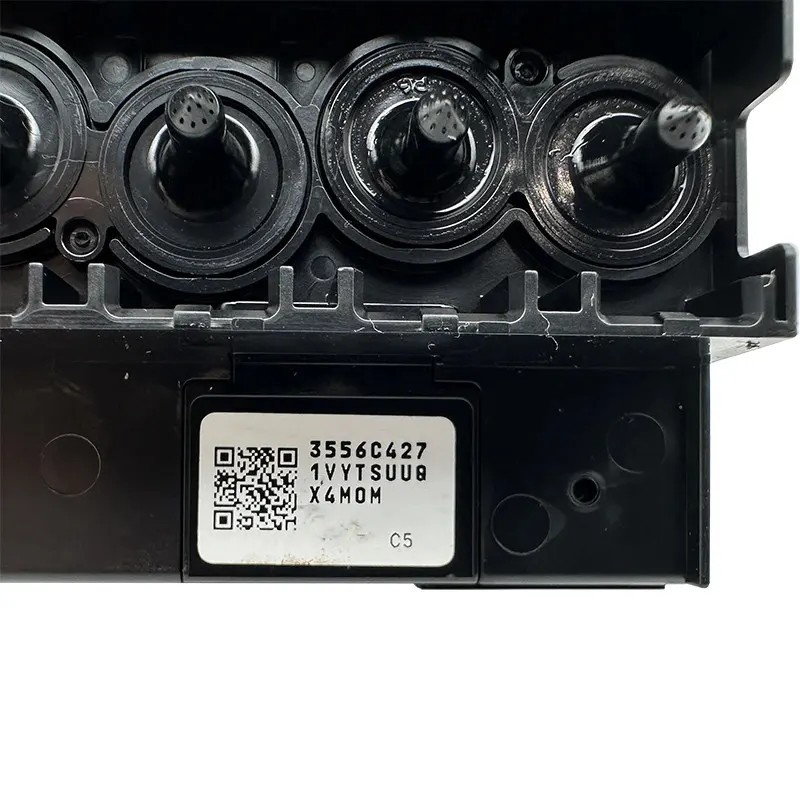

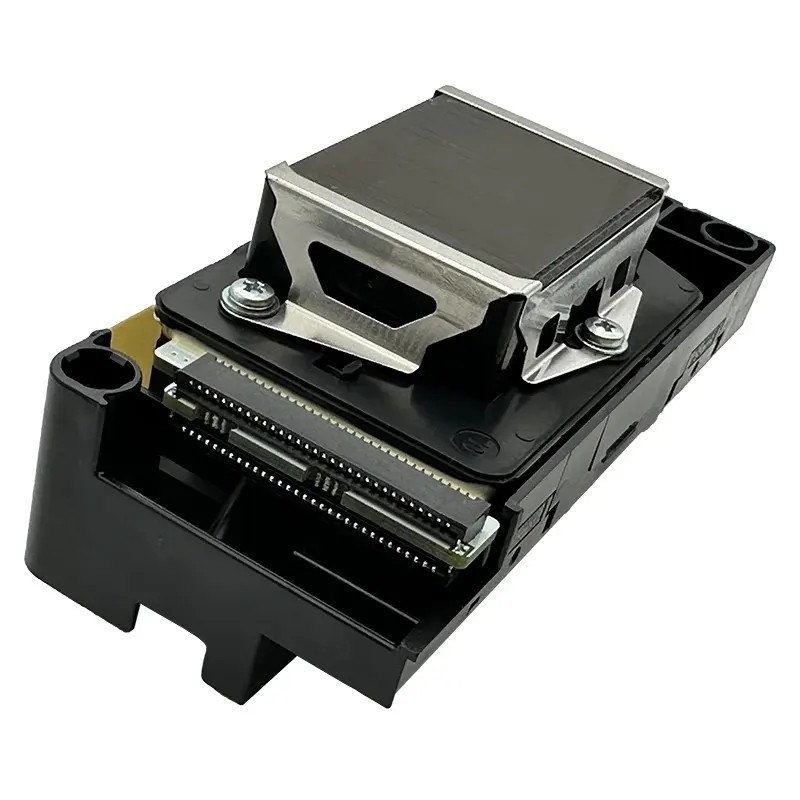

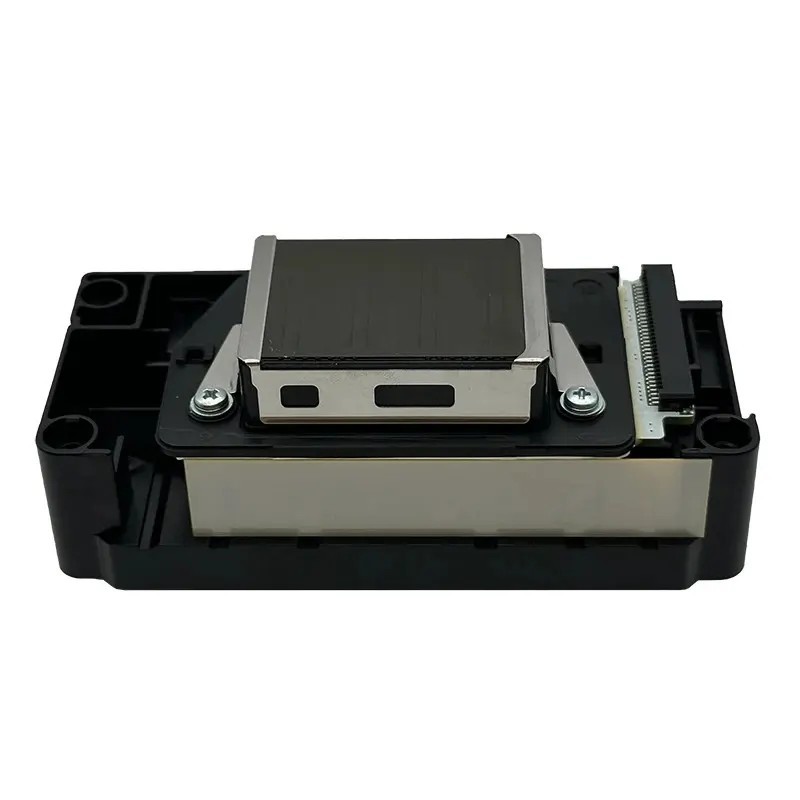

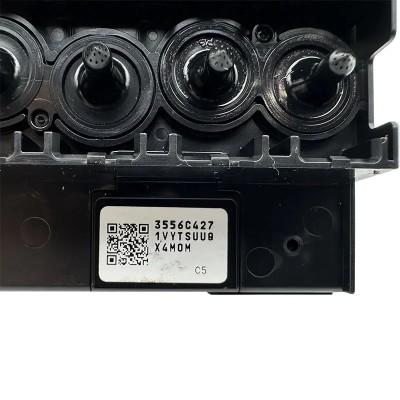

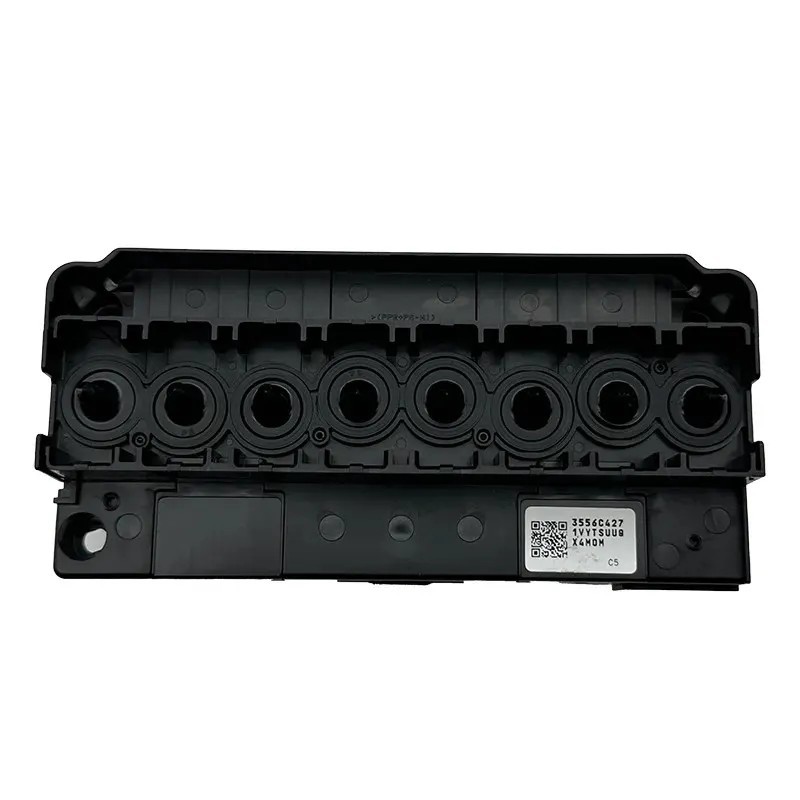

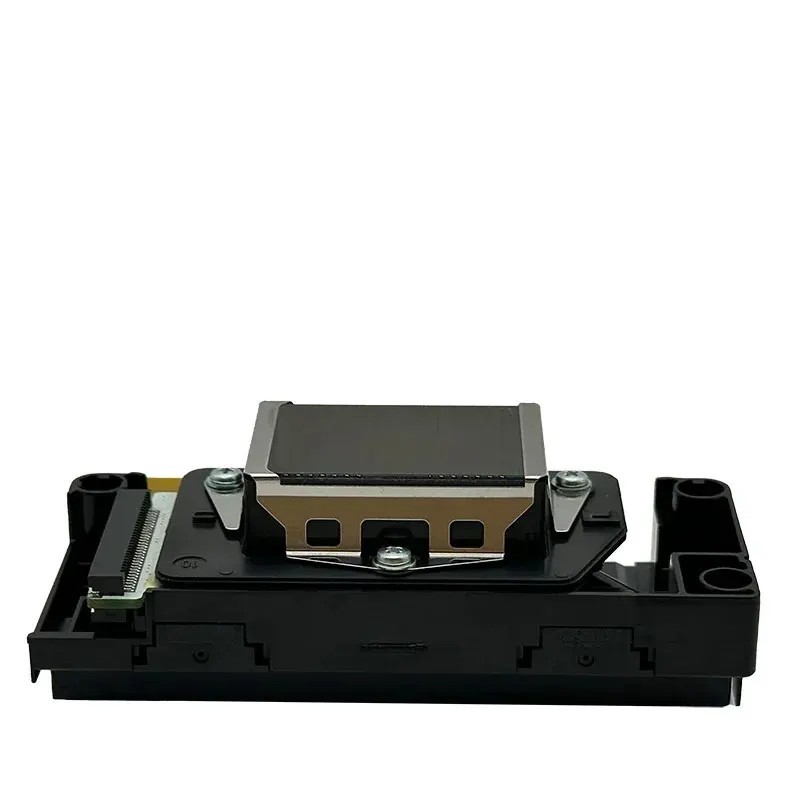

Epson F160010 F158000 DX5 Water-Based Printhead for Stylus Pro 4400 AnaJet FP-125

Product Overview

The Epson DX5 Water-Based Printhead is an original, Japanese-manufactured replacement component designed for high-resolution, high-speed printing using water-based dye, pigment, and sublimation ink systems. Built on Epson’s MicroPiezo technology, this printhead features 8 nozzle channels with 180 nozzles per line, providing a total of 1,440 nozzles. Utilizing Variable-Sized Droplet Technology, it fires precise droplets ranging from 1.5 picoliters up to 21 picoliters at an 8 kHz firing frequency, reaching native resolutions up to 1440 dpi for vibrant color transitions and sharp image detail.

Part Information

• Brand: Epson
• Product Type: Inkjet Printhead
• Model: DX5 (Water-Based / Unlocked)
• Part Number: F160010
• Alternative Part Numbers: F158000, F186000
• Technology: MicroPiezo Piezoelectric Inkjet
• Nozzle Configuration: 8 Channels x 180 Nozzles per Channel (1,440 Nozzles Total)
• Minimum Drop Volume: 1.5 pl (Variable Droplet Technology)
• Maximum Drop Volume: 21 pl
• Native Resolution: 1440 dpi
• Firing Frequency: 8 kHz
• Ink Compatibility: Water-Based Dye, Aqueous Pigment, and Textile Inks
• Condition: Genuine Original

Technical Specifications

Technical Precision & Operational Advisory

• Water-Based Ink Formulation Only: This printhead is engineered with water-based manifolds specifically for aqueous dye, pigment, and DTG textile inks. Do not use eco-solvent, mild-solvent, UV, or harsh chemical ink formulations, as non-compatible solvents will degrade the internal manifold seals and permanently damage the head.
• Data Cable Replacement: It is highly recommended to replace the flat flexible printhead data cables (FFC) when installing a new printhead. Aged, flexed, or ink-contaminated head cables can cause electrical short circuits that damage both the printhead and the main carriage board.

Compatible Printers or Equipment

Important Compatibility Notice

Please verify your existing part number and equipment model before placing an order. If you are unsure about compatibility, please contact us with your printer or machine model and the part number of your existing component.

Packaging and Shipping

The product will be carefully packed to help ensure safe international shipping.

Genuine Product Notice

This product is supplied as a genuine original replacement part.

Warranty and Customer Protection

This product is covered by a 1-year warranty against manufacturing defects, subject to the applicable warranty terms and conditions.

We also provide a 30-day store guarantee for customer protection. If your item arrives damaged, defective, or does not function properly upon receipt, please contact us within 30 days of delivery.

Depending on the situation, we will provide a replacement or a 100% refund of the product payment.

Please contact us before returning any item so we can assist you with the return process.

This warranty and return protection applies in accordance with our applicable warranty and return terms.
