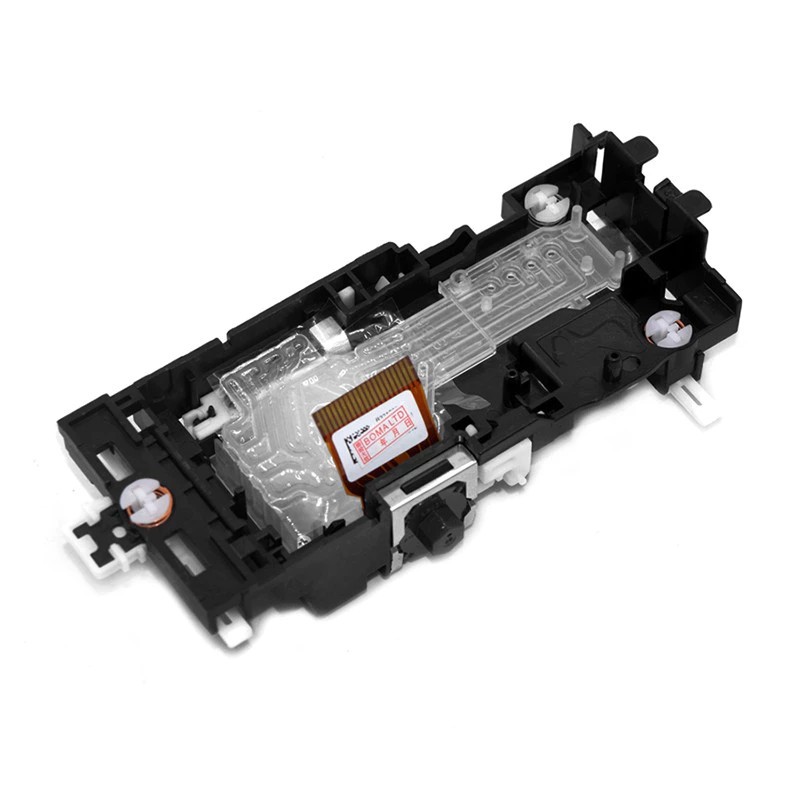

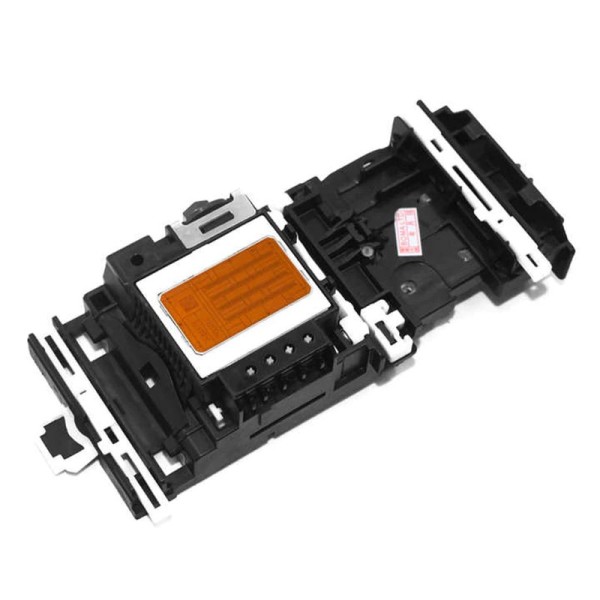

Brother LK7133001 Printhead Carriage Unit (LK7133002) for MFC-J Series
- Write a review
$225.00
$130.50
Save 42%
Original Brother LK7133001 (superseding LK7133002) printhead carriage unit designed for Brother MFC-J legacy A3 and A4 multifunction inkjet printers.
OEM Service & Replacement Assembly
Original Brother LK7133001 / LK7133002 Printhead Carriage Unit
OEM Part Number: LK7133001 / LK7133002 | Business Inkjet Multifunction Scanning Carriage Chassis & Head Retainer Assembly
Business Inkjet Generation & Hardware Revision Notice
The Brother LK7133001 Printhead Carriage Unit (cross-referenced and superseded in factory production revisions by LK7133002) is an authentic OEM scanning carriage frame engineered for Brother's high-speed Business Inkjet Multifunction series (including the MFC-J2310, MFC-J2510, MFC-J3520, MFC-J3720, and MFC-J6720DW). This platform features an updated low-friction bushing system, redesigned ribbon cable strain-relief clamps, and an integrated optical linear encoder pocket built for landscape-oriented high-speed printing.
Product Overview
The Original Brother LK7133001 / LK7133002 Printhead Carriage Unit is a factory-original electro-mechanical scanning carriage frame designed to restore accurate printhead alignment, correct platen clearance, and stable bidirectional registration across Brother business multifunction inkjet printers. Riding along the central precision steel carriage shaft, this chassis securely houses the multi-color piezoelectric printhead module, preventing mechanical skew, rotational play, and platen strikes during continuous high-speed text and graphic sweeps.
Molded from high-rigidity polyoxymethylene (POM) engineering composite with self-lubricating sleeve bushings, the LK7133001 / LK7133002 minimizes frictional drag on the carriage drive motor, protecting the drive motor against overload, belt slipping, and thermal shutdown. The chassis incorporates specialized retention channels for the 4-line fluid supply tube harness connected to off-carriage front-loading ink bays (LC103 / LC107 / LC109 / LC38 / LC563 series). It also features an exact-tolerance mounting pocket for the carriage encoder PCB (CR sensor), maintaining optical alignment with the transparent linear timing slit film to eliminate horizontal banding, ghosting, and line-feed errors.
Part Information
| Product Name | Original Brother Printhead Carriage Unit |
| OEM Manufacturer | Brother Industries, Ltd. (Nagoya, Japan) |
| Primary OEM Part Numbers | LK7133001 / LK7133002 |
| Component Classification | Business Inkjet Scanning Carriage Chassis & Printhead Retainer |
| Supported Media Format | A4 Landscape / Ledger / A3 (platform dependent up to 297 × 420 mm) |
| Compatible Printhead Engine | Brother High-Density Piezo Printhead Module for MFC-J2310 / J2510 / J3520 |
| Ink Cartridge Series Pairing | Brother LC103, LC105, LC107, LC109, LC563, LC565, LC567 Series |
| Manufacturing Standard | 100% Genuine Brother Factory Original Service Replacement Part |
Technical Specifications
| Chassis Material | High-rigidity molded polyoxymethylene (POM) engineering composite with internal reinforcing ribs |
| Bushing Configuration | Dual low-friction sliding sleeve bushings calibrated for precision steel carriage guide shaft |
| CR Sensor Mounting | Integrated rear clip pocket securing the optical photo-interrupter CR encoder PCB |
| Fluid Line Management | 4-channel molded tube retention saddle securing continuous ink lines without pinching |
| FFC Ribbon Protection | Smooth radius cable clamps preventing conductor fatigue and shielding contacts |
| Drive Belt Interface | Molded toothed timing belt clamp with anti-backlash spring tension seat |
| Operating Temperature Range | 10°C to 35°C (50°F to 95°F) |
| Operating Humidity Range | 20% to 80% RH non-condensing |
| Net Physical Weight | Approx. 96 grams (chassis frame alone) / Packaged: ~0.18 kg |
Key Features & Operational Advantages
- Stable Platen Gap Retention: Precision sleeve bushings maintain consistent nozzle-to-paper clearance across the platen, preventing printhead corner strikes and ink smear during landscape-oriented feeding.
- Smooth Fluid Routing: Curved tube saddle anchors the 4-tube ink lines securely, preventing line sagging, kinking, or interference with the scanner frame during rapid carriage sweeps.
- Optical Encoder Alignment: Rigid sensor mounting bracket keeps the CR optical read head perpendicular to the transparent linear timing slit strip, preventing position reading drift and ghosting.
- Direct 1:1 OEM Fitment: Built to exact Brother factory engineering tolerances, allowing direct transfer of the original piezo printhead, damper manifold, grounding springs, and belt tensioners.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. Platform Incompatibility with Earlier J-Series & T-Series: The LK7133001 / LK7133002 is designed specifically for this generation of Business Inkjet machines (MFC-J2310 / J2510 / J3520 / J3720). It cannot be used in older cartridge models (such as MFC-J625DW which use LK6090001 / LK5399001 or MFC-J6510DW which use LK6583001), nor continuous refill tank models (such as D01L64001 / D01L64002). Check chassis clips and damper seats before ordering.
2. Guide Rail Cleaning & Lubrication Protocol: Prior to mounting the replacement carriage onto the steel guide shaft, clean away all dried ink aerosol, paper dust, and hardened grease using an alcohol-dampened lint-free cloth. Apply an even film of Brother-approved synthetic PTFE grease (Floil / Krytox formulation). Running the carriage dry will cause excessive friction and trigger Error 48, Error 49, or Error 4F drive motor faults.
3. Linear Timing Strip (Encoder) Threading Care: Carefully thread the transparent linear timing strip through the slotted center of the optical sensor. Never touch the optical strip with bare hands or crease the film. If smudged, clean gently with a dry microfiber cloth—never use alcohol or solvent cleaners on the timing strip, as solvents will dissolve the fine printed index marks.
4. Post-Assembly Maintenance Routine: Following mechanical reassembly, access Brother Maintenance Mode (`Menu` > `Mono Start` > `Up Arrow 4 times` on key models) and execute:
• Function 68: Automatic printhead alignment and sensor check.
• Function 77: Print the comprehensive all-nozzle check and registration test pattern to verify proper vertical and horizontal drop placement.
Compatible Models & Systems
| Printer Platform | OEM Carriage Part No. | Supported Machine Configuration |
|---|---|---|
| Brother MFC-J2310 / MFC-J2510 | LK7133001 / LK7133002 | A4 Landscape High-Speed Wireless All-in-One |
| Brother MFC-J3520 / MFC-J3720 | LK7133001 / LK7133002 | A3 / Ledger Business Smart Inkjet All-in-One Printers |
| Brother MFC-J6520DW / MFC-J6720DW | LK7133001 / LK7133002 | Wide-Format Business Inkjet Multifunction Printers |
| Brother MFC-J6920DW | LK7133001 / LK7133002 | Dual Tray Flagship A3 Business All-in-One with NFC |
| Earlier A3 Gen (Reference) | LK6583001 | Incompatible: First-gen A3 models (MFC-J6510DW / J6910DW) use LK6583001 chassis |
*Model Differentiation Note: Specifically designed for Brother Business Inkjet models listed above. Confirm the printer serial model plate before breaking package seals.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Brother Replacement Service Component in sealed factory protective packaging.
Manufacturer Warranty: Covered under Brother's standard OEM service parts limited warranty against materials and manufacturing defects out-of-box prior to mounting. No warranty covers damage resulting from excessive force, broken retention clips, stripped mounting screw bosses, or dry guide shaft friction.
Return Policy: Precision electro-mechanical service part. Unopened, factory-sealed packaging is eligible for standard commercial return. Once mounting screws have been installed or the carriage seated onto a printer chassis rail, returns cannot be accepted due to mechanical stress and wear risks.
