Genuine Bizerba GLP / GV 4" 203 DPI Thermal Printhead (P/N 65620170701)
- Write a review
$325.00
The Bizerba GLP/GV 4" wide printhead (203 dpi) with part number 65620170701 is a genuine replacement part designed for reliable, high-quality printing.
GENUINE OEM REPLACEMENT • PRECISION THERMAL HARDWARE
Bizerba GLP / GV 4" 203 DPI Thermal Printhead (P/N 65620170701) – Genuine OEM Replacement
OEM Part Number: 65620170701
Print Width / Resolution: 4" (104 mm) / 203 DPI (8 dots/mm)
Core Engine: Thick-Film Ceramic Direct Thermal / Thermal Transfer
Target Platform: Bizerba Industrial Weigh-Price Labeling Systems
ARCHITECTURAL OVERVIEW
Industrial High-Speed Thermal Imaging & Heavy-Duty Weigh-Price Labeling

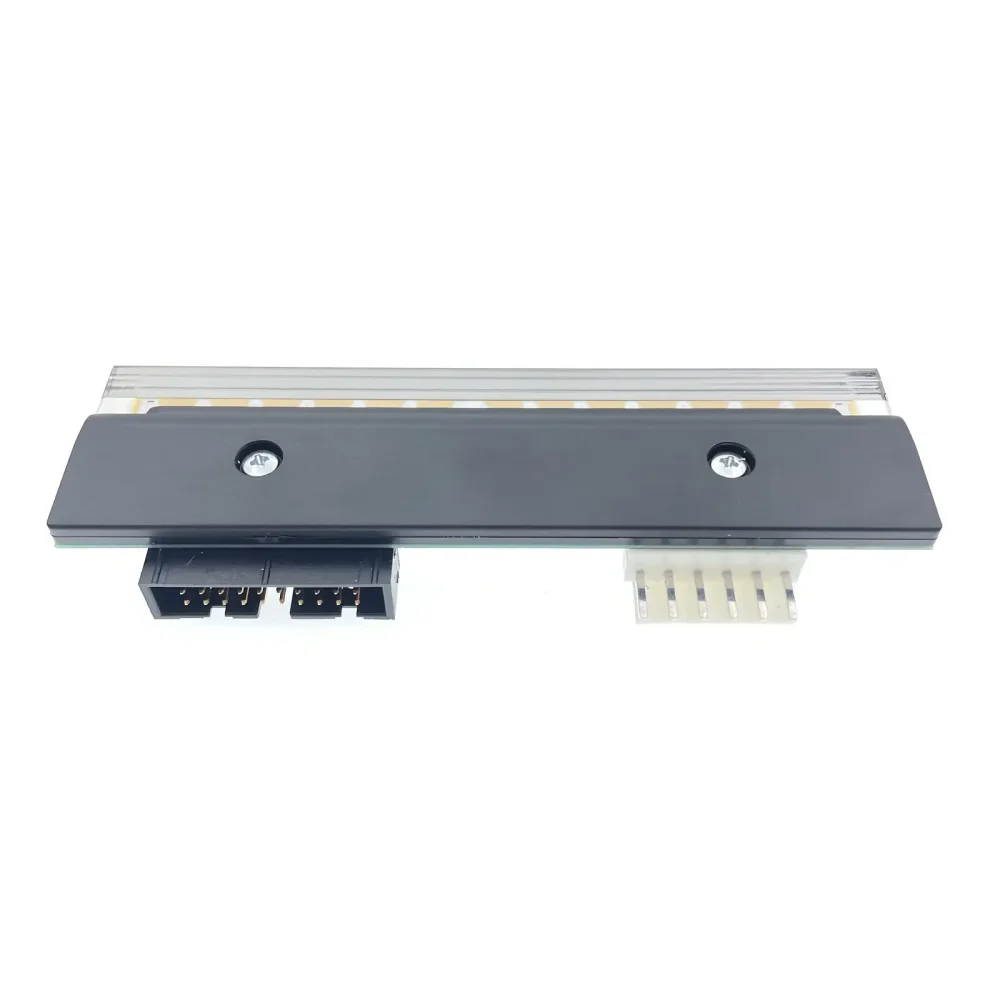

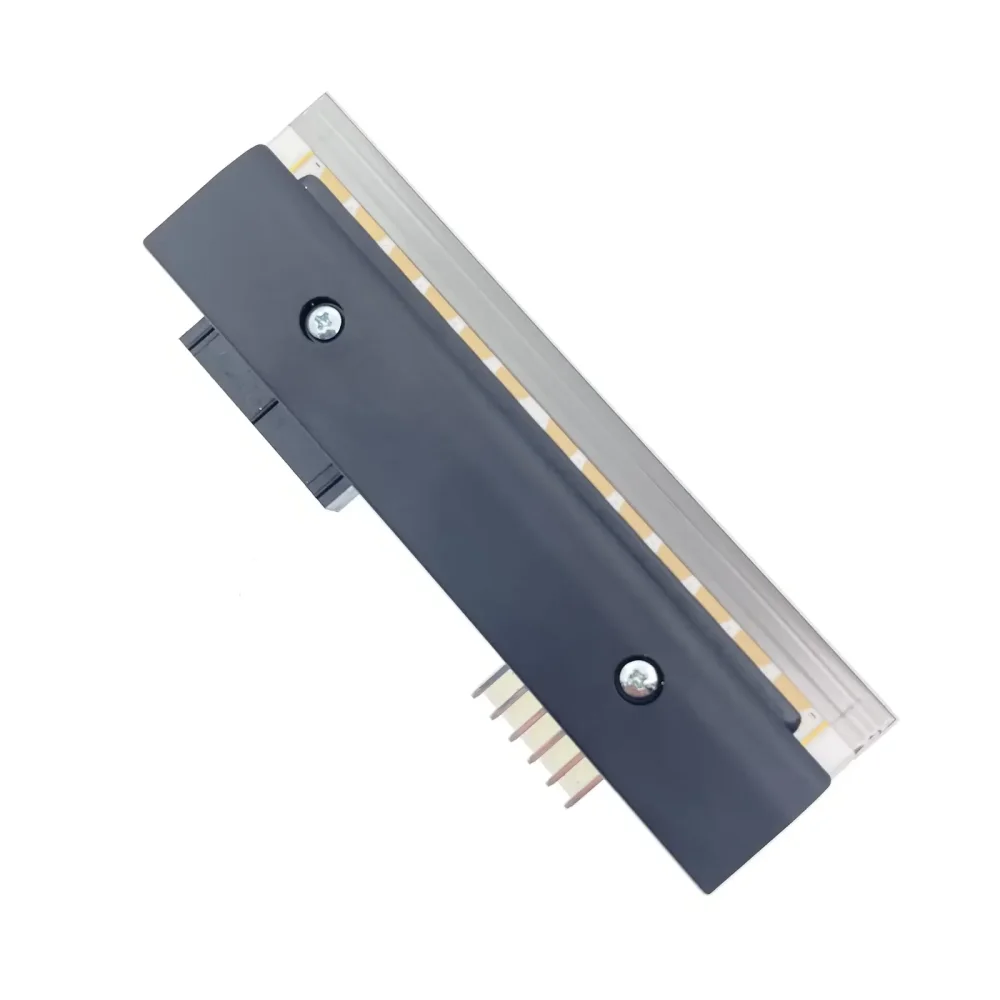

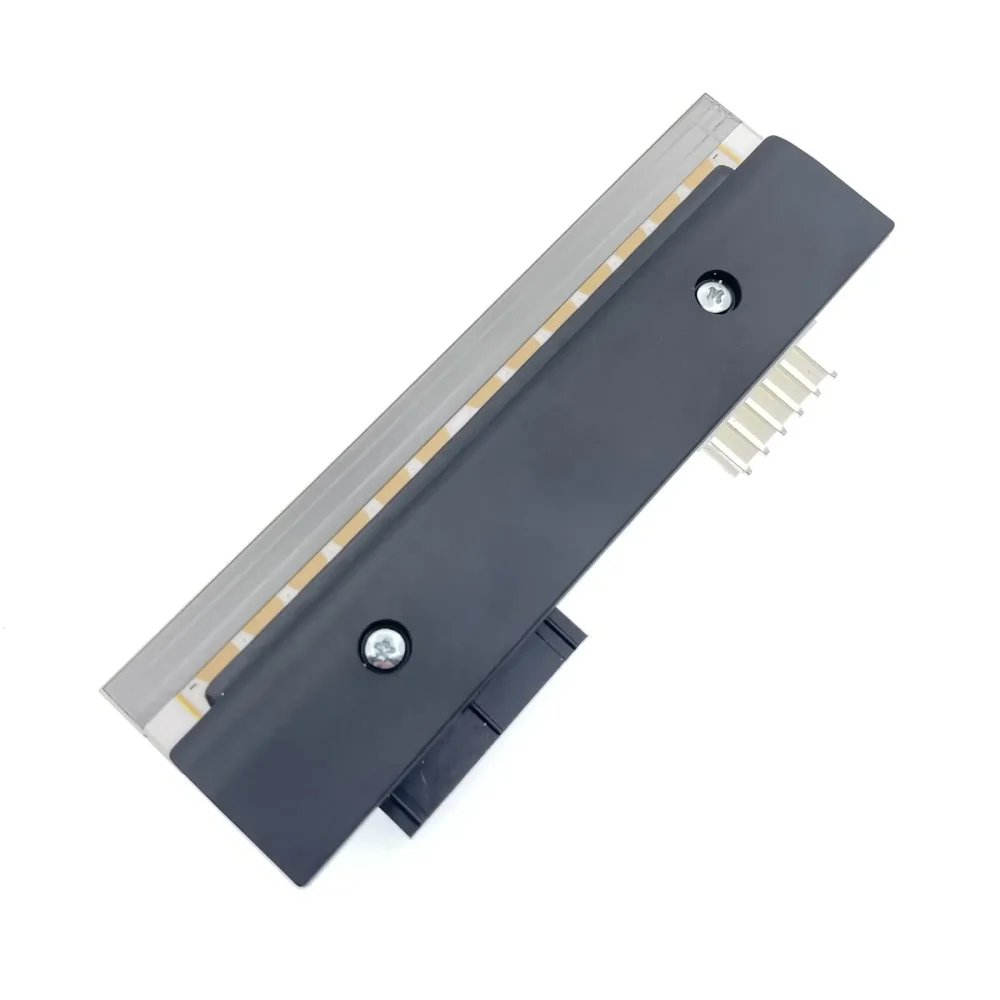

The Bizerba Genuine 4" 203 DPI Thermal Printhead (OEM P/N: 65620170701) is an authentic OEM replacement transducer designed specifically for continuous-duty Bizerba GLP, GLP-W, and GV automated weigh-price labeling (WPL) machinery. Engineered to withstand intense commercial packaging, food processing, logistics, and industrial weighing environments, this component ensures sustained thermal efficiency, crisp barcode readability (GS1 DataBar, EAN-128, QR), and high-contrast variable data generation across multi-shift operational cycles.
Constructed with a premium thick-film ceramic glaze substrate and protected by a diamond-like carbon (DLC) protective passivation overcoat, the heating array features 832 individual micro-resistors calibrated at 8 dots per millimeter (203 dots per inch) across a nominal 104 mm (4.09 inch) active print width. This resilient surface structure provides superior abrasion resistance against direct thermal treated paper surfaces, synthetic films, and wax/resin thermal transfer ribbons while resisting corrosive residue accumulation and electrostatic buildup during continuous high-speed media travel.

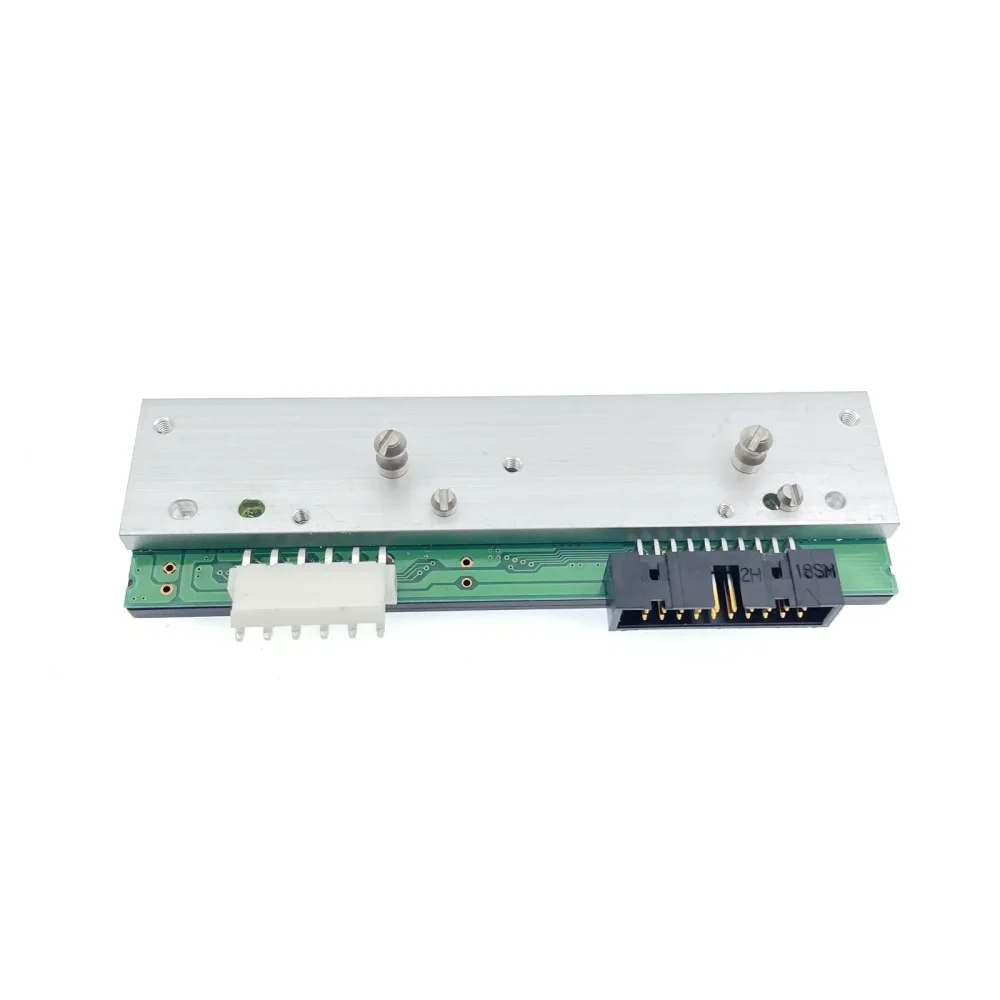

The printhead assembly incorporates a precision-extruded aluminum heat-sink spine that ensures rapid thermal dissipation across the entire dot line, preventing dot-spreading and heat blooming at elevated strobe frequencies. Each unit is delivered factory-calibrated with integrated onboard temperature sensing thermistors and multi-pin power/logic interface connectors, vacuum-packaged in genuine Bizerba ESD-shielded cleanroom packaging to guarantee factory-new physical integrity and electrical alignment out of the box.
CRITICAL OEM HARDWARE VERIFICATION: Always verify the manufacturer part number stamped on the rear aluminum heat-sink bracket or machine configuration plate before ordering. Bizerba manufactures printhead variants in both 203 DPI (8 dots/mm) and 300 DPI (12 dots/mm) with distinct 3-inch, 4-inch, and 6-inch chassis profiles that utilize non-interchangeable driver logic boards and strobe timing profiles.
ENGINEERING REFERENCE
Identification Notes & Core Distinction
| Reference Standard | Technical Description & Interoperability Context |
|---|---|
| Current OEM P/N | 65620170701 – Genuine OEM factory standard 4-inch 203 DPI thermal array with integrated mounting spine and gold-plated signal terminals for Bizerba GLP/GV series. |
| Associated OEM Number | 65620170700 / 71058470000 – Cross-referenced legacy internal revision codes; functionally equivalent in mechanical footprint and electrical pinout for 4" 8 dots/mm applicators. |
| Core Engine Class | Ceramic Thick-Film Thermal Print Line (Kyocera/Bizerba Industrial Core) – Standard resistance grouping factory calibrated to match OEM mainboard strobe voltages. |
NOTICE: Do not mistake this 203 DPI (8 dots/mm) printhead for the 300 DPI (12 dots/mm) variant (e.g., P/N 65620170500 or 71058480000) or narrower 3" (80 mm) models. Operating mismatched resolution heads will cause CPU communication timing mismatch errors, incorrect graphic scaling, and distorted barcode geometries.
SYSTEM PARAMETERS
Product Details & Engineering Specifications
Part A: Part Information Matrix
| Product Name | Bizerba GLP / GV Series 4-Inch 203 DPI Thermal Printhead Assembly |
| OEM Manufacturer | Bizerba SE & Co. KG (Balingen, Germany) |
| Exact Model / Hardware Type | GLP / GV 104mm 8-Dot Thermal Printhead Transducer |
| OEM Part Number | 65620170701 |
| Known Cross-Reference / Aliases | 65620170700, 71058470000, BZ65620170701 |
| Media & Ribbon Compatibility | Direct Thermal (Top-Coated & Non-Top-Coated Thermal Labels) & Thermal Transfer (Wax, Wax-Resin, Full Resin Ribbons) |
| Product Status & Condition | 100% Brand New, Genuine OEM Original, Factory Sealed in Anti-Static Enclosure |
| Country of Origin | Germany / Japan (OEM Sub-assembly) |
| Primary Industrial Application | Automated Weigh-Price Labeling (WPL), Food Packaging, Pallet & Case Logistics Labeling |
Part B: Technical Specifications
| Print Technology | Direct Thermal (DT) / Thermal Transfer (TTR) Dual Mode |
| Optical Resolution | 203 DPI (8.00 dots/mm) |
| Effective Print Width | 104.0 mm / 4.09 inches |
| Total Heating Elements (Dot Count) | 832 Resistive Micro-Dots |
| Dot Pitch / Spacing | 0.125 mm (center to center) |
| Nominal Resistance Rating | Approx. 650 Ω – 750 Ω (Individual rank value printed on head label) |
| Maximum Linear Printing Speed | Up to 250 mm/s (10 inches per second) depending on machine configuration |
| Substrate & Protective Layer | Ceramic Substrate with Diamond-Like Carbon (DLC) Abrasion Protective Glaze |
| Thermal Feedback Mechanism | Integrated High-Precision NTC Thermistor |
| Electrical Interface Terminals | Multi-pin gold-plated header for logic control, strobe lines, and driver power |
| Structural Heat Sink | Solid Machined & Anodized Aluminum Thermal Transfer Backbone |
FIELD ADVISORY
Technical Precision & Installation Warning
CAUTION: Installation and replacement of this thermal printhead must be conducted exclusively by trained industrial service personnel adhering to OEM mechanical and electrostatic safety protocols.
- Electrostatic Discharge (ESD) Protection: Wear a grounded anti-static wrist strap. The microscopic heating elements and internal shift register chips are susceptible to instantaneous electrostatic puncture.
- Complete Power Isolation (No Hot-Swapping): Disconnect all primary mains power to the Bizerba GLP/GV terminal prior to unlatching the print carriage. Never disconnect or connect the printhead cable while the machine is powered on. Live mating will cause immediate logic gate breakdown and mainboard power driver short circuits.
- Cable & Harness Inspection: Inspect the printhead ribbon harness for bent, oxidised, or frayed pins. Ensure connector plugs seat square and latch firmly into the socket without skewed angular alignment.
- Media & Platen Roller Calibration: Clean the rubber platen roller using 99% electronic-grade isopropyl alcohol (IPA) before mounting the new printhead. Adjust mechanical cam head pressure evenly across the label width; uneven head pressure induces localized friction hot-spots and premature burn-out.
- Handling Factory-Sealed Unit: Never touch the thermal dot line directly with bare fingers; skin acids degrade the DLC protective glaze. Clean exclusively with lint-free swabs saturated in pure IPA prior to first power-up.
- Resistance Rank & Strobe Calibration: Verify the resistance ranking value (printed on the printhead barcode label) and update the Bizerba terminal service parameters if the new rank deviates from the previous head. Incorrect strobe voltage settings will lead to pale printing or element burnout.
SYSTEM INTEROPERABILITY
Compatible Engine Platforms & Procurement Terms
Bizerba GLP Series Label Printers
- Bizerba GLP 160 (4" / 203 DPI Configuration)
- Bizerba GLP 80 / GLP 102 (Wide Chassis Subsystem)
- Bizerba GLP-W Series Weigh-Price Labelers
- Bizerba GLP Maxx 102 (203 DPI Module)
Bizerba GV Series & OEM Subsystems
- Bizerba GV Series Automatic Industrial Labelers
- Bizerba GV-M / GV-A In-line Packaging Units
- Bizerba GS Series Automated Sorting & Labeling Lines (4" 203 DPI)
- Bizerba GH Industrial Direct Thermal Applicators
Confirmed Incompatible Hardware Platforms (Strict Verification Notice)
DO NOT USE IN: Bizerba 300 DPI high-resolution models (P/N 65620170500), Bizerba 3-inch 80 mm compact print stations, Bizerba SC-II / XC / KH retail scale printers, or GLM-I / GLM-E series 6-inch (168 mm) print modules. Do not attempt retrofit into Zebra, Datamax, Honeywell, or Avery Dennison applicators. Physical mounting tabs and electronic voltage tolerances are mutually incompatible.
Terms, Warranty & Customer Protection Policy
1. Pre-Installation Authenticity Guarantee: This item is guaranteed to be 100% genuine OEM, brand new, and factory-sealed from the original Bizerba manufacturing facility. Each unit displays its genuine factory serial identification barcode and resistance ranking label.
2. Limited Operational Warranty (30 Working Days): Due to the operating nature of thermal resistive components, warranty coverage against manufacturing defects is valid for 30 working days from the verified date of delivery. Any warranty claim requires continuous, unedited high-definition video documentation covering package unboxing, pre-installation multi-meter resistance verification, and replacement executed by a qualified industrial maintenance technician.
3. Final Sale & Return Exclusions: Under standard industrial spare parts policy, once the original anti-static protective packaging has been broken, mechanically bolted into a machine carriage, or subjected to electrical power, this printhead is classified as an active consumable item and is non-returnable and non-refundable. Physical scratches on the glazed dot line, abrasions, or burn-lines caused by paper debris or power surges void all claims immediately.
